產品名稱：
公制螺紋24°錐輕系列
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

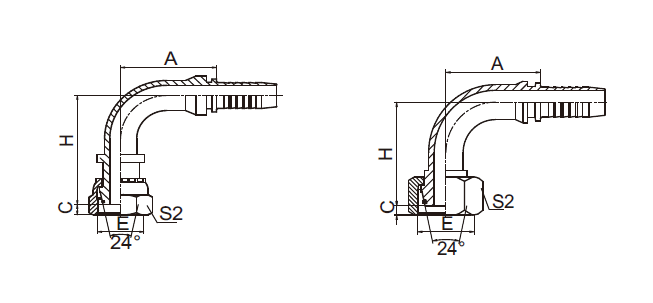

| 訂貨號 | 螺紋E | 膠 管 | 硬管外徑 | O形圈 | 尺 寸 | |||||
| 公稱內徑 | 標號 | A | C | H | S2 | |||||
| DLC-12-04 | M12X1.5 | 6 | 04 | 6 | 004.5X1.5 | 30 | 1 | 31 | 17 | |
| DLC-14-04T | M14X1.5 | 6 | 04 | 8 | 006.5X1.5 | 32 | 2 | 31 | 17 | |
| DLC-16-04T | M16X1.5 | 6 | 04 | 10 | 008.0X1.5 | 30 | 2 | 30 | 19 | |
| DLC-16-05T | M16X1.5 | 8 | 05 | 10 | 008.0X1.5 | 32 | 2 | 34 | 19 | |
| DLC-16-06 | M16X1.5 | 10 | 06 | 10 | 008.0X1.5 | 35.3 | 2 | 34 | 22 | |
| DLC-18-05T | M18X1.5 | 8 | 05 | 12 | 010.0X1.5 | 35 | 1.5 | 34 | 22 | |
| DLC-18-06T | M18X1.5 | 10 | 06 | 12 | 010.0X1.5 | 33 | 3 | 37 | 22 | |
| DLC-22-06T | M22X1.5 | 10 | 05 | 15 | 012.0X2.0 | 35.3 | 3 | 36 | 27 | |
| DLC-22-08T | M22X1.5 | 12 | 08 | 15 | 012.0X2.0 | 42 | 2.5 | 41 | 27 | |
| DLC-26-08T | M26X1.5 | 12 | 08 | 18 | 015.0X2.0 | 41 | 2.5 | 42 | 32 | |
| DLC-26-10T | M26X1.5 | 16 | 10 | 18 | 015.0X2.0 | 56 | 2.5 | 47 | 32 | |
| DLC-26-12 | M26X1.5 | 20 | 12 | 18 | 015.0X2.0 | 64.9 | 2.5 | 65 | 32 | |
| DLC-30-10T | M30X2 | 16 | 10 | 22 | 020.0X2.0 | 56 | 3.8 | 55 | 36 | |
| DLC-30-12T | M30X2 | 20 | 12 | 22 | 020.0X2.0 | 61 | 4 | 62 | 36 | |
| DLC-36-12T | M36X2 | 20 | 12 | 28 | 026.0X2.0 | 65.5 | 4.5 | 66.5 | 46 | |
| DLC-45-16T | M45X2 | 25 | 16 | 35 | 032.0X2.0 | 76.7 | 4 | 75 | 55 | |
| DLC-45-20T | M45X2 | 32 | 20 | 35 | 032.0X2.0 | 91.5 | 4 | 86 | 55 | |
| DLC-52-20T | M52X2 | 32 | 20 | 42 | 038.0X2.0 | 93 | 4 | 87 | 60 | |
| DLC-52-24T | M52X2 | 40 | 24 | 42 | 038.0X2.0 | 109.4 | 4 | 100.5 | 60 | |
