產品名稱：

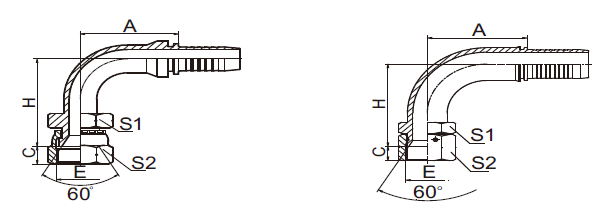

日本英制內螺紋60°內錐面 90°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述
| 訂貨號 | 螺紋E | 膠 管 | 尺 寸 | |||||||||||
| 公稱內徑 | 標號 | A | C | H | S1 | S2 | ||||||||
| BJC-04-04 | G1/4"X19 | 6 | 4 | 30 | 8 | 38 | 19 | 19 | ||||||
| BJC-04-05 | G1/4"X19 | 8 | 5 | 34 | 8 | 41 | 19 | 19 | ||||||
| BJC-06-06 | G3/8"X19 | 10 | 6 | 35.6 | 9 | 45.8 | 22 | 22 | ||||||
| BJC-08-08 | G1/2"X14 | 12 | 8 | 41 | 12 | 53 | 27 | 27 | ||||||
| BJC-12-12 | G3/4"X14 | 20 | 12 | 65.5 | 13.5 | 69 | 32 | 32 | ||||||
| BJC-16-16 | G1"X11 | 25 | 16 | 76.7 | 16 | 76.5 | 41 | 41 | ||||||
| BJC-20-20W | G1.1/4"X11 | 32 | 20 | 91.5 | 18.5 | 92.5 | 50 | 50 | ||||||
| BJC-24-24W | G1.1/2'X11 | 40 | 24 | 109.4 | 19 | 110.5 | 55 | 55 | ||||||
| BJC-32-32W | G2"X11 | 50 | 32 | 131.8 | 23 | 133.8 | 70 | 70 | ||||||
