產品名稱：
英管內螺紋60° 90°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

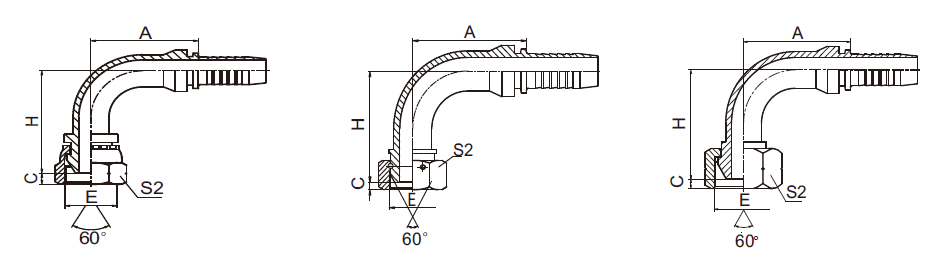

| 訂貨號 | 螺紋E | 膠 管 | 尺 寸 | ||||||||
| 公稱內徑 | 標號 | A | C | H | S2 | ||||||
| BFC-04-04 | G1/4"X19 | 6 | 4 | 30 | 5.5 | 36.5 | 19 | ||||
| BFC-04-05 | G1/4"X19 | 8 | 5 | 33 | 5.5 | 39.5 | 19 | ||||
| BFC-04-06 | G1/4"X19 | 10 | 6 | 30 | 5.5 | 36.5 | 19 | ||||
| BFC-06-04 | G3/8"X19 | 6 | 4 | 30 | 6.3 | 37.7 | 22 | ||||
| BFC-06-05 | G3/8"X19 | 8 | 5 | 33 | 6.3 | 40.7 | 22 | ||||
| BFC-06-06 | G3/8"X19 | 10 | 6 | 35.3 | 6.3 | 43 | 22 | ||||
| BFC-08-06T | G1/2"X14 | 10 | 6 | 35.3 | 7 | 43.3 | 27 | ||||
| BFC-08-08 | G1/2"X14 | 12 | 8 | 41 | 7.5 | 51 | 27 | ||||
| BFC-08-10 | G1/2"X14 | 16 | 10 | 56.5 | 7.5 | 55.5 | 27 | ||||
| BFC-10-08 | G5/8"X14 | 12 | 8 | 41 | 9.5 | 51.5 | 30 | ||||
| BFC-10-10 | G5/8"X14 | 16 | 10 | 56 | 9.5 | 56 | 30 | ||||
| BFC-12-08T | G3/4"X14 | 12 | 8 | 41 | 10.9 | 52.1 | 32 | ||||
| BFC-12-10 | G3/4"X14 | 16 | 10 | 56.5 | 10.9 | 56.6 | 32 | ||||
| BFC-12-12 | G3/4"X14 | 20 | 12 | 64.9 | 10.9 | 66.1 | 32 | ||||
| BFC-16-12T | G1"X11 | 20 | 12 | 65.5 | 11.7 | 68.3 | 41 | ||||
| BFC-16-14 | G1"X11 | 22 | 14 | 71.2 | 11.7 | 69.3 | 41 | ||||
| BFC-16-16 | G1"X11 | 25 | 16 | 76.7 | 11.7 | 73.8 | 41 | ||||
| BFC-20-16T | G1.1/4"X11 | 25 | 16 | 78 | 11 | 69.5 | 50 | ||||
| BFC-20-20W | G1.1/4"X11 | 32 | 20 | 91.5 | 11 | 84.3 | 50 | ||||
| BFC-24-24W | G1.1/2"X11 | 40 | 24 | 109.4 | 13 | 103 | 55 | ||||
| BFC-32-32W | G2"X11 | 50 | 32 | 131.8 | 16 | 123.3 | 70 | ||||
