產品名稱：

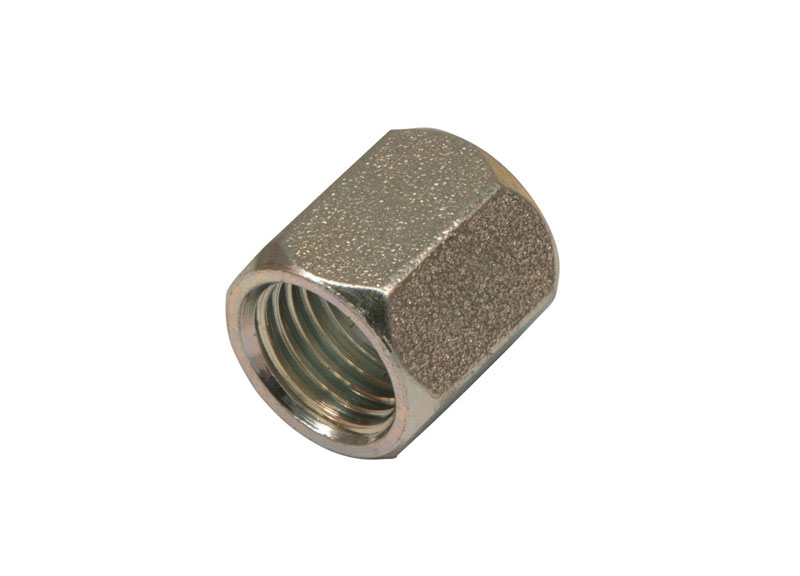

美制JIC螺母/襯套
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述
| 訂貨號 | 螺 紋 | 接管外徑 | 尺 寸 | ||||||
| 螺母 | 公制管襯套 | F | D | L1 | S2 | D1 | L | ||
| SJN-06 | SJS-06 | 7/16"X20 | 6 | 15.8 | 14 | 9.7 | 10.4 | ||
| SJN-08 | SJS-08 | 1/2"X20 | 8 | 17.3 | 17 | 11.3 | 11.2 | ||
| SJN-10 | SJS-10 | 9/16"X18 | 10 | 18.5 | 19 | 12.7 | 12.7 | ||
| SJN-12 | SJS-12 | 3/4"X16 | 12 | 21.6 | 24 | 17.3 | 14.2 | ||
| SJN-14 | SJS-14 | 7/8"X14 | 14 | 24.9 | 27 | 20.2 | 16.8 | ||
| SJN-15 | SJS-15 | 7/8"X14 | 15 | 24.9 | 27 | 20.2 | 16.8 | ||
| SJN-16 | SJS-16 | 7/8"X14 | 16 | 24.9 | 27 | 20.2 | 16.8 | ||
| SJN-18 | SJS-18 | 1.1/16"X12 | 18 | 26.2 | 32 | 24.7 | 17.3 | ||
| SJN-20A | SJS-20A | 1.1/16"X12 | 20 | 26.2 | 32 | 24.7 | 17.3 | ||
| SJN-20 | SJS-20 | 1.3/16"X12 | 20 | 27.7 | 36 | 27.8 | 19.3 | ||
| SJN-22 | SJS-22 | 1.3/16"X12 | 22 | 27.7 | 36 | 27.8 | 19.3 | ||
| SJN-25 | SJS-25 | 1.5/16"X12 | 25 | 28.7 | 38 | 31 | 19.8 | ||
| SJN-28 | SJS-28 | 1.5/8"X12 | 28 | 31.2 | 50 | 38.9 | 23.1 | ||
| SJN-30 | SJS-30 | 1.5/8"X12 | 30 | 31.2 | 50 | 38.9 | 23.1 | ||
| SJN-32 | SJS-32 | 1.5/8"X12 | 32 | 31.2 | 50 | 38.9 | 23.1 | ||
| SJN-35 | SJS-35 | 1.7/8"X12 | 35 | 36.1 | 60 | 45.3 | 28.4 | ||
| SJN-38 | SJS-38 | 1.7/8"X12 | 38 | 36.1 | 60 | 45.3 | 28.4 | ||
| SJN-50 | SJS-50 | 2.1/2"X12 | 50 | 44.5 | 75 | 61.2 | 30.2 | ||
注:本樣本所列襯套為JIC公制管襯套，如需英制管襯套,請咨詢。
