產(chǎn)品名稱：
英錐管外螺紋 90°彎接頭
產(chǎn)品系列搜索
請選擇您想要尋找的相關產(chǎn)品系列
產(chǎn)品描述
| 訂貨號 | 螺 紋 | 鋼管外徑 | 尺 寸 | 工作壓力 MPa | ||||||

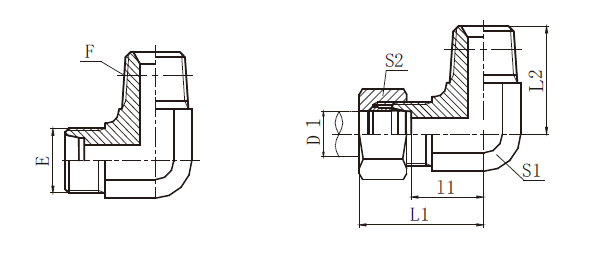

| E | F | D1 | l1 | L1 | L2 | S1 | S2 | |||
| A04-12-02/9 | M12X1.5 | R1/8"X28 | 6 | 13 | 28 | 21 | 11 | 14 | 25 輕系列 L | |
| A04-12-04/9 | M12X1.5 | R1/4"X19 | 6 | 15.5 | 30.5 | 25.5 | 14 | 14 | ||
| A04-14-02/9 | M14X1.5 | R1/8"X28 | 8 | 15.5 | 30.5 | 23.5 | 14 | 17 | ||
| A04-14-04/9 | M14X1.5 | R1/4"X19 | 8 | 15.5 | 30.5 | 25.5 | 14 | 17 | ||
| A04-16-04/9 | M16X1.5 | R1/4"X19 | 10 | 17.5 | 32.5 | 26.5 | 16 | 19 | ||
| A04-16-06/9 | M16X1.5 | R3/8"X19 | 10 | 17.5 | 32.5 | 28.5 | 16 | 19 | ||
| A04-16-08/9 | M16X1.5 | R1/2"X14 | 10 | 21 | 36 | 36 | 22 | 19 | ||
| A04-18-04/9 | M18X1.5 | R1/4"X19 | 12 | 21 | 34 | 28 | 19 | 22 | ||
| A04-18-06/9 | M18X1.5 | R3/8"X19 | 12 | 19 | 34 | 30.5 | 19 | 22 | ||
| A04-18-08/9 | M18X1.5 | R1/2"X14 | 12 | 21 | 36 | 36 | 22 | 22 | ||
| A04-22-06/9 | M22X1.5 | R3/8"X19 | 15 | 22 | 37 | 32.5 | 22 | 27 | ||
| A04-22-08/9 | M22X1.5 | R1/2"X14 | 15 | 22 | 37 | 36 | 22 | 27 | ||
| A04-22-12/9 | M22X1.5 | R3/4"X14 | 15 | 25.5 | 40.5 | 43.5 | 27 | 27 | 16 輕系列 L | |
| A04-26-08/9 | M26X1.5 | R1/2"X14 | 18 | 25.5 | 42 | 39.5 | 27 | 32 | ||
| A04-26-12/9 | M26X1.5 | R3/4"X14 | 18 | 25.5 | 42 | 43.5 | 27 | 32 | ||
| A04-30-12/9 | M30X2 | R3/4"X14 | 22 | 29.5 | 45.8 | 45.3 | 30 | 36 | ||
| A04-30-16/9 | M30X2 | R1"X11 | 22 | 31.5 | 48 | 50 | 33 | 36 | ||
| A04-36-16/9 | M36X2 | R1"X11 | 28 | 33.3 | 49.8 | 52 | 36 | 41 | ||
| A04-36-20/9 | M36X2 | R1.1/4"X11 | 28 | 36.2 | 52.7 | 57 | 41 | 41 | ||
| A04-45-20/9 | M45X2 | R1.1/4"X11 | 35 | 39.2 | 60.7 | 61 | 48 | 50 | ||
| A04-52-24/9 | M52X2 | R1.1/2"X11 | 42 | 44.8 | 67.8 | 68 | 55 | 60 | ||
| A14-14-04/9 | M14X1.5 | R1/4"X19 | 6 | 17.5 | 32.5 | 25.5 | 14 | 17 | 40 重系列 S | |
| A14-16-04/9 | M16X1.5 | R1/4"X19 | 8 | 18.7 | 33.7 | 26.5 | 16 | 19 | ||
| A14-18-06/9 | M18X1.5 | R3/8"X19 | 10 | 19.5 | 36 | 30.5 | 19 | 22 | ||
| A14-20-06/9 | M20X1.5 | R3/8"X19 | 12 | 19.5 | 36 | 30.5 | 19 | 24 | ||
| A14-22-06/9 | M22X1.5 | R3/8"X19 | 14 | 23 | 41 | 32.5 | 22 | 27 | ||
| A14-22-08/9 | M22X1.5 | R1/2"X14 | 14 | 23 | 41 | 36 | 22 | 27 | ||
| A14-24-08/9 | M24X1.5 | R1/2"X14 | 16 | 24 | 42.5 | 37.3 | 24 | 30 | ||
| A14-30-08/9 | M30X2 | R1/2"X14 | 20 | 28.3 | 49.8 | 41 | 30 | 36 | ||
| A14-30-12/9 | M30X2 | R3/4"X14 | 20 | 28.3 | 49.8 | 45.3 | 30 | 36 | ||
| A14-36-16/9 | M36X2 | R1"X11 | 25 | 32.8 | 56.8 | 52.5 | 36 | 46 | 25 重系列 S | |
| A14-42-16/9 | M42X2 | R1"X11 | 30 | 36.2 | 62.7 | 56.5 | 41 | 50 | ||
| A14-52-20/9 | M52X2 | R1.1/4"X11 | 38 | 45.8 | 76.8 | 67 | 55 | 60 | ||
| A14-52-24/9 | M52X2 | R1.1/2"X11 | 38 | 45.8 | 76.8 | 68 | 55 | 60 | ||
注：如需帶卡套及螺母整套訂貨，則請在代號后加“/A”,如A04-22-08/9A。如需不銹鋼304材料，請在訂貨號后加SS，不銹鋼316L材料，請在訂貨號后加SSB。
