產品名稱：
日本公制外螺紋/英管外螺紋直接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

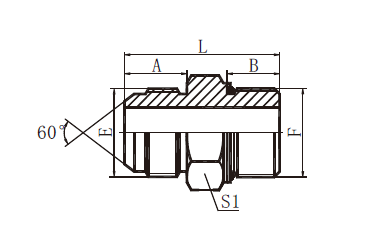

| 訂貨號 | 螺 紋 | O形圈 | 尺 寸 | ||||||||
| E | F | F端 | A | B | L | S1 | |||||
| AK5-14-04 | M14X1.5 | G1/4"X19 | O111 | 17 | 11 | 36 | 19 | ||||
| AK5-14-06 | M14X1.5 | G3/8"X19 | O113 | 17 | 11.5 | 36.5 | 22 | ||||
| AK5-16-06 | M16X1.5 | G3/8"X19 | O113 | 18 | 11.5 | 38 | 22 | ||||
| AK5-18-06 | M18X1.5 | G3/8"X19 | O113 | 18 | 11.5 | 38 | 22 | ||||
| AK5-22-08 | M22X1.5 | G1/2"X14 | O115 | 20 | 14 | 45 | 27 | ||||
| AK5-24-08 | M24X1.5 | G1/2"X14 | O115 | 21.5 | 14 | 45.5 | 27 | ||||
| AK5-24-12 | M24X1.5 | G3/4"X14 | O119 | 21.5 | 15.5 | 51 | 32 | ||||
| AK5-30-12 | M30X1.5 | G3/4"X14 | O119 | 26 | 15.5 | 52.5 | 32 | ||||
| AK5-33-12 | M33X1.5 | G3/4"X14 | O119 | 30 | 15.5 | 59.5 | 36 | ||||
| AK5-33-16 | M33X1.5 | G1"X11 | O217 | 30 | 18 | 62 | 41 | ||||
