產品名稱：
英錐管外螺紋
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

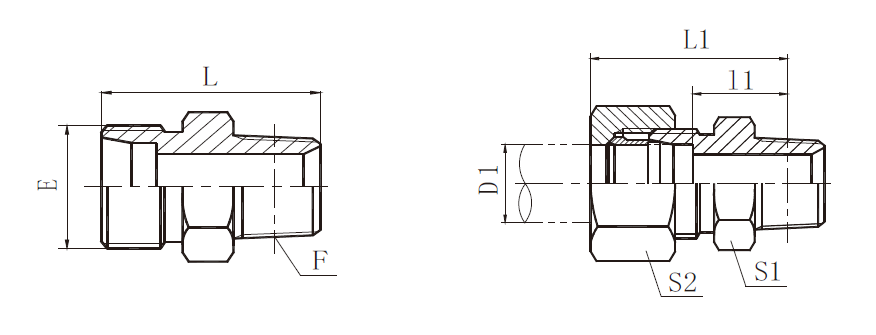

| 訂貨號 | 螺 紋 | 鋼管外徑 | 尺 寸 | 工作壓力 MPa | |||||
| E | F | D1 | l1 | L1 | S1 | S2 | |||
| A04-12-02SP | M12X1.5 | R1/8"X28 | 6 | 13 | 28 | 12 | 14 | 25 輕系列 L | |
| A04-12-04SP | M12X1.5 | R1/4"X19 | 6 | 17 | 34 | 14 | 14 | ||
| A04-14-04SP | M14X1.5 | R1/4"X19 | 8 | 17.5 | 31.5 | 14 | 17 | ||
| A04-14-06SP | M14X1.5 | R3/8"X19 | 8 | 17.6 | 32.6 | 19 | 17 | ||
| A04-16-04SP | M16X1.5 | R1/4"X19 | 10 | 17.5 | 32.5 | 17 | 19 | ||
| A04-16-06SP | M16X1.5 | R3/8"X19 | 10 | 18.6 | 33.6 | 19 | 19 | ||
| A04-16-08SP | M16X1.5 | R1/2"X14 | 10 | 21.8 | 36.8 | 22 | 19 | ||
| A04-16-12SP | M16X1.5 | R3/4"X14 | 10 | 21.5 | 36.5 | 30 | 19 | ||
| A04-18-04SP | M18X1.5 | R1/4"X19 | 12 | 18.5 | 33.5 | 19 | 22 | ||
| A04-18-06SP | M18X1.5 | R3/8"X19 | 12 | 18.6 | 33.6 | 19 | 22 | ||
| A04-18-08SP | M18X1.5 | R1/2"X14 | 12 | 21.8 | 36.8 | 22 | 22 | ||
| A04-22-08SP | M22X1.5 | R1/2"X14 | 15 | 22.8 | 37.8 | 24 | 27 | ||
| A04-26-08SP | M26X1.5 | R1/2"X14 | 18 | 23.3 | 39.8 | 27 | 32 | 16 輕系列 L | |
| A04-26-12SP | M26X1.5 | R3/4"X14 | 18 | 22 | 38.5 | 30 | 32 | ||
| A04-30-12SP | M30X2 | R3/4"X14 | 22 | 24 | 40.5 | 32 | 36 | ||
| A04-36-16SP | M36X2 | R1"X11 | 28 | 29.6 | 46.1 | 38 | 41 | ||
| A04-36-20SP | M36X2 | R1.1/4"X11 | 28 | 29.3 | 45.8 | 46 | 41 | ||
| A04-45-16SP | M45X2 | R1"X11 | 35 | 29.6 | 51.1 | 46 | 50 | ||
| A04-45-20SP | M45X2 | R1.1/4"X11 | 35 | 28.3 | 49.8 | 46 | 50 | ||
| A04-52-20SP | M52X2 | R1.1/4"X11 | 42 | 29.8 | 52.8 | 55 | 60 | ||
| A04-52-24SP | M52X2 | R1.1/2"X11 | 42 | 29.8 | 52.8 | 55 | 60 | ||
| A14-14-04SP | M14X1.5 | R1/4"X19 | 6 | 21.5 | 36.5 | 17 | 17 | 40 重系列 S | |
| A14-16-04SP | M16X1.5 | R1/4"X19 | 8 | 21.5 | 36.5 | 17 | 19 | ||
| A14-20-04SP | M20X1.5 | R1/4"X19 | 12 | 23 | 39.5 | 22 | 24 | ||
| A14-20-06SP | M20X1.5 | R3/8"X19 | 12 | 23.1 | 39.6 | 22 | 24 | ||
| A14-22-06SP | M22X1.5 | R3/8"X19 | 14 | 24.6 | 42.6 | 24 | 27 | ||
| A14-22-08SP | M22X1.5 | R1/2"X14 | 14 | 27.8 | 45.8 | 24 | 27 | ||
| A14-24-06SP | M24X1.5 | R3/8"X19 | 16 | 24.1 | 42.6 | 27 | 30 | ||
| A14-24-08SP | M24X1.5 | R1/2"X14 | 16 | 27.3 | 45.8 | 27 | 30 | ||
| A14-30-12SP | M30X2 | R3/4"X14 | 20 | 28 | 49.5 | 32 | 36 | ||
| A14-36-12SP | M36X2 | R3/4"X14 | 25 | 29.5 | 53.5 | 38 | 46 | ||
| A14-36-16SP | M36X2 | R1"X11 | 25 | 34.1 | 58.1 | 38 | 46 | 25 重系列 S | |
| A14-42-16SP | M42X2 | R1"X11 | 30 | 35.6 | 62.1 | 46 | 50 | ||
| A14-42-20SP | M42X2 | R1.1/4"X11 | 30 | 34.3 | 60.8 | 46 | 50 | ||
| A14-52-20SP | M52X2 | R1.1/4"X11 | 38 | 36.8 | 67.8 | 55 | 60 | ||
| A14-52-24SP | M52X2 | R1.1/2"X11 | 38 | 36.8 | 67.8 | 55 | 60 | ||
注：如需帶卡套及螺母整套訂貨，則請在代號后加“/A”,如A04-22-08/A。如需不銹鋼304材料，請在訂貨號后加SS，不銹鋼316L材料，請在訂貨號后加SSB。
